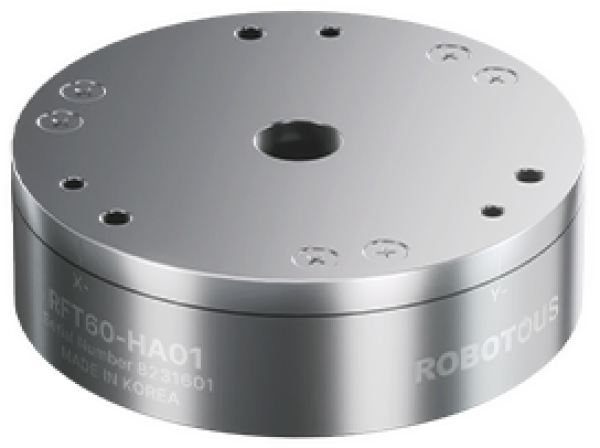

Hollow-core 6-axis force torque sensor
- Hollow Core design for cable routing
- Compact Ø60 mm body
- Suitable for robotic wrists and integrated systems
- Reliable force measurement for automation and research
Specifications at a Glance
| Item | Fxy | Fz(Fz-) | Txy | Tz |
| Load Capacity | 150N | 200N | 4Nm | 4Nm |
| Resolution | 150mN | 150mN | 5mNm | 5mNm |
| Overload Capacity(%) | 150 | 150(300) | 150 | 150 |
| Dimension & Weight | 60(D) x 18.5(H)mm 120g | |||
